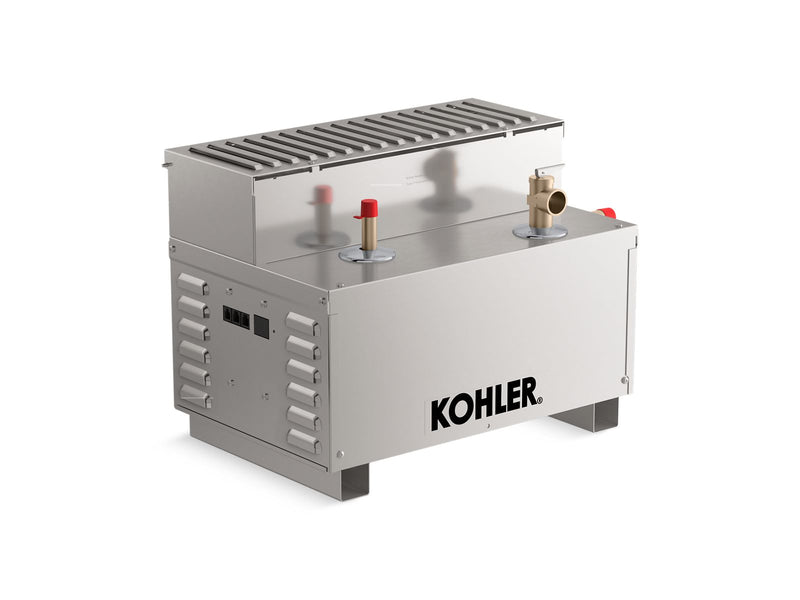

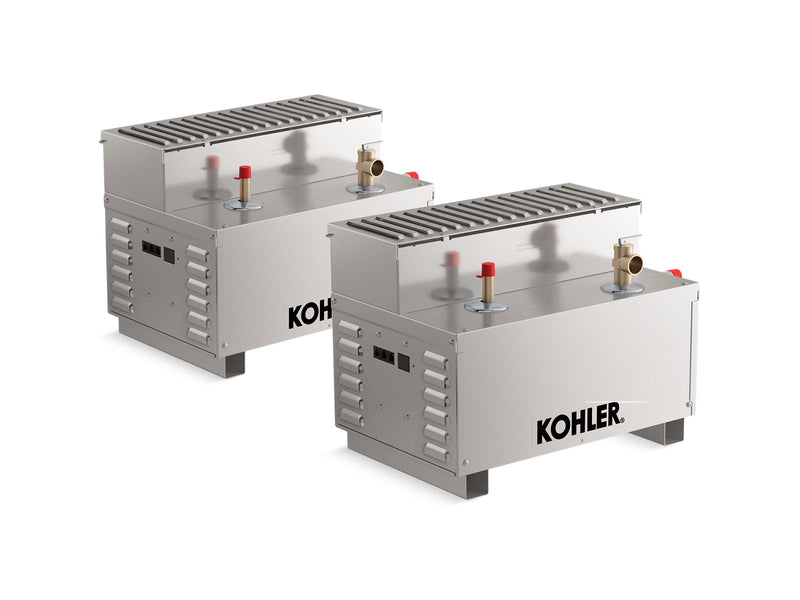

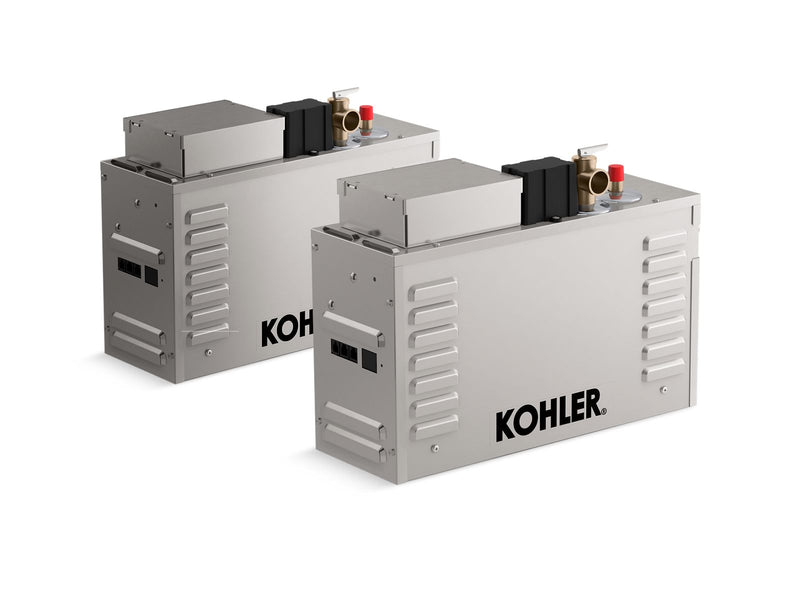

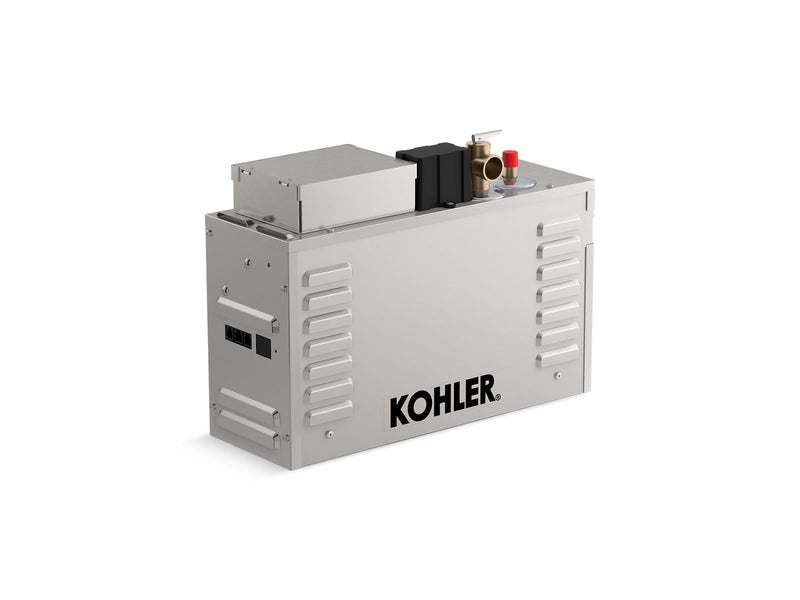

Kohler Invigoration Steam Generator — 5–30 kW
by Kohler
Original price
$2,524.50
-
Original price
$8,000.25
Original price
$2,524.50
$2,524.50
-
$8,000.25
Current price
$2,524.50
✔ Authorized Kohler Dealer — full manufacturer warranty included
✔ Free shipping to the lower 48 states on orders $199+
✔ Full manufacturer warranty included
✔ Secure checkout powered by Shopify
✔ Expert sauna support before and after purchase
✔ Questions? Call or chat with a sauna specialist (848) 283-5788
Bring coordinated design and practical control to your home wellness space with the Kohler Invigoration Steam Generator — 5–30 kW. Compare the available configurations below and review the Kohler drawings for your exact model. Select components and plan the installation around your room, utilities and the exact model requirements.
Features and Compatibility
- Choose the generator output that matches the room sizing requirements in the Kohler specification sheets.
- Fast-Response technology and Constant Steam support steam delivery with reduced temperature fluctuations.
- Power Clean provides one-touch automatic cleaning, while a 20-minute shutoff limits inactive sessions.
- Generators require compatible Invigoration controls or digital adapters and steam heads, sold separately. Higher-output configurations have different component and electrical requirements; consult the model-specific documents.
Models and Specifications
| SKU | Configuration / Finish | Net weight |
|---|---|---|
| 32324-NA | Invigoration Steam Generator, 5 Kw | 52 LB |
| 32325-NA | Invigoration Steam Generator, 7 Kw | 52 LB |
| 32326-NA | Invigoration Steam Generator, 9 Kw | 52 LB |
| 32327-NA | Invigoration Steam Generator, 11 Kw | 52 LB |
| 32328-NA | Invigoration Steam Generator, 13 Kw | 52 LB |
| 32329-NA | Invigoration Steam Generator, 15 Kw | 52 LB |
| 32332-NA | Invigoration Steam Generator, 18 Kw | 60.8 LB |
| 32333-NA | Invigoration Steam Generator, 22 Kw | 60.8 LB |
| 32334-NA | Invigoration Steam Generator, 26 Kw | 95.4 LB |
| 32335-NA | Invigoration Steam Generator, 30 Kw | 95.4 LB |
For physical dimensions, connection locations and installation clearances, use the model-specific Kohler specification sheet below.
Manufacturer Resources
- Kohler K-32324 specification sheet and dimensional drawing
- Kohler installation / operating document — 1601844-2.pdf
- Kohler K-32325 specification sheet and dimensional drawing
- Kohler K-32326 specification sheet and dimensional drawing
- Kohler K-32327 specification sheet and dimensional drawing
- Kohler K-32328 specification sheet and dimensional drawing
- Kohler installation / operating document — 1601845-2.pdf
- Kohler K-32329 specification sheet and dimensional drawing
- Kohler K-32332 specification sheet and dimensional drawing
- Kohler K-32333 specification sheet and dimensional drawing
- Kohler K-32334 specification sheet and dimensional drawing
- Kohler K-32335 specification sheet and dimensional drawing
