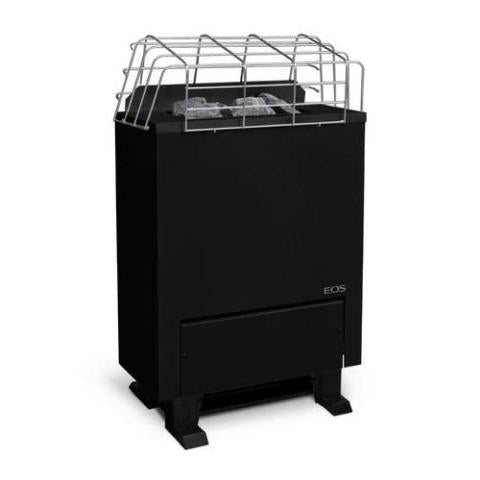

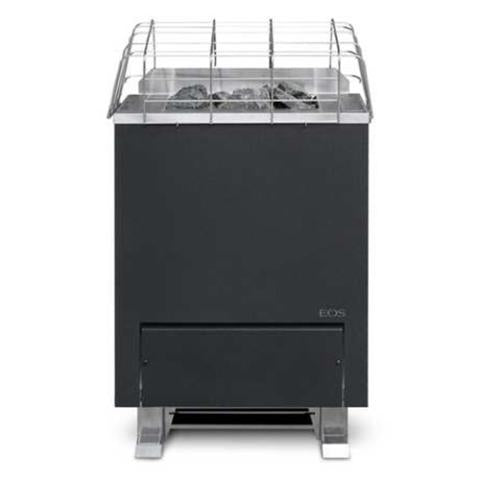

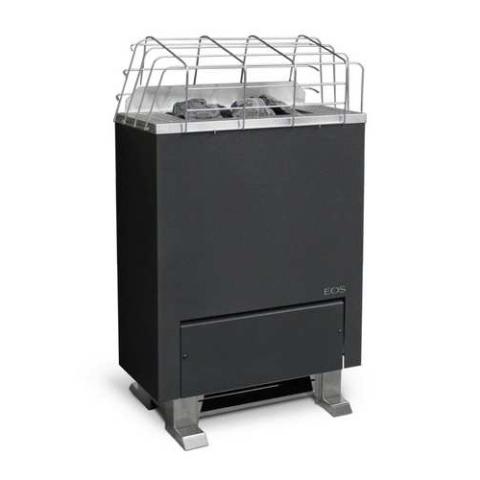

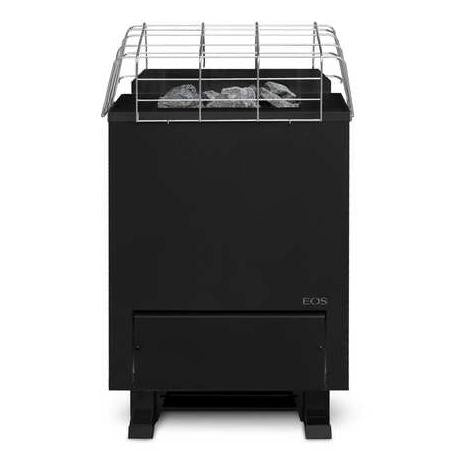

EOS Gracil Freestanding Electric Sauna Heater
✔ Free shipping to the lower 48 states on orders $199+
✔ Full manufacturer warranty included
✔ Secure checkout powered by Shopify
✔ Expert sauna support before and after purchase
✔ Questions? Call or chat with a sauna specialist (848) 283-5788
The EOS Gracil freestanding sauna heater pairs a narrow cabinet with a stainless steel protective stone cover. Its 9.8-inch depth helps preserve usable sauna space, while the straight body panels and recessed terminal box keep the installation compact. Choose the listed black or anthracite with stainless trim finish and the required electrical configuration.
Key features
- Freestanding heater with a slim 9.8-inch cabinet depth.

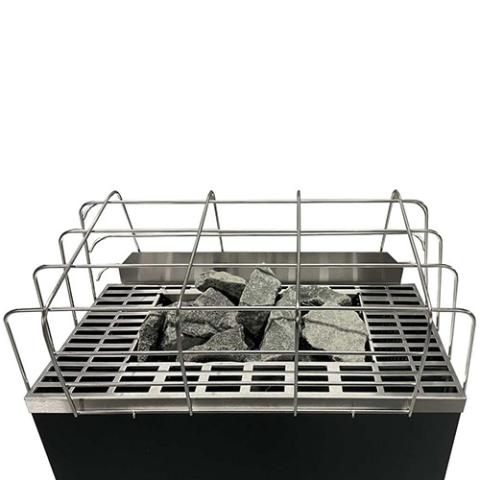

- Protective stainless steel cover above the stone compartment.
- Removable tray collects dust and debris beneath the heater.
- Available in 6, 7.5 and 9 kW outputs.
- Diabase sauna stones are included in the supplier package.
Compatibility and selection
EOS Touch 3 or EmoTec D control and the correctly rated power box are required and sold separately. The optional Gracil floor safety rail is a separate accessory.
Included items
- Gracil freestanding heater
- Diabase sauna stones
- Protective grill and supplied mounting hardware
- Installation and operation manual
Specifications
| Brand | EOS |
|---|---|
| Heater type | Electric sauna heater |
| Mounting | Freestanding |
| Country of manufacture | Germany |
| Width | 19.9" (50.5 cm) |
| Depth | 9.8" (25 cm) |
| Height | 29.9" (76 cm) |
Available configurations
| Supplier SKU | Finish | Output | Electrical | Room volume | Supplier-listed weight |
|---|---|---|---|---|---|
| 14-947531 | Anthracite with Stainless Trim | 6 kW | 208V / 3PH | 213–300 cu. ft. | 78.2 lb |
| 14-947532 | Anthracite with Stainless Trim | 7.5 kW | 208V / 3PH | 280–420 cu. ft. | 79.3 lb |
| 14-947533 | Anthracite with Stainless Trim | 9 kW | 208V / 3PH | 313–494 cu. ft. | 80.4 lb |
| 14-947534 | Anthracite with Stainless Trim | 6 kW | 240V / 2PH | 213–300 cu. ft. | 78.2 lb |
| 14-947535 | Anthracite with Stainless Trim | 7.5 kW | 240V / 2PH | 280–420 cu. ft. | 79.3 lb |
| 14-947536 | Anthracite with Stainless Trim | 9 kW | 240V / 2PH | 313–494 cu. ft. | 80.4 lb |
| 14-947985 | Black | 6 kW | 208V / 3PH | 213–300 cu. ft. | 78.2 lb |
| 14-947986 | Black | 7.5 kW | 208V / 3PH | 280–420 cu. ft. | 79.3 lb |
| 14-947987 | Black | 9 kW | 208V / 3PH | 313–494 cu. ft. | 80.4 lb |
| 14-947988 | Black | 6 kW | 240V / 2PH | 213–300 cu. ft. | 78.2 lb |
| 14-947989 | Black | 7.5 kW | 240V / 2PH | 280–420 cu. ft. | 79.3 lb |
| 14-947990 | Black | 9 kW | 240V / 2PH | 313–494 cu. ft. | 80.4 lb |
Room volume is the supplier’s model selection range. Select the heater for the actual sauna construction and follow the EOS installation instructions for clearances, ventilation and electrical connections.
