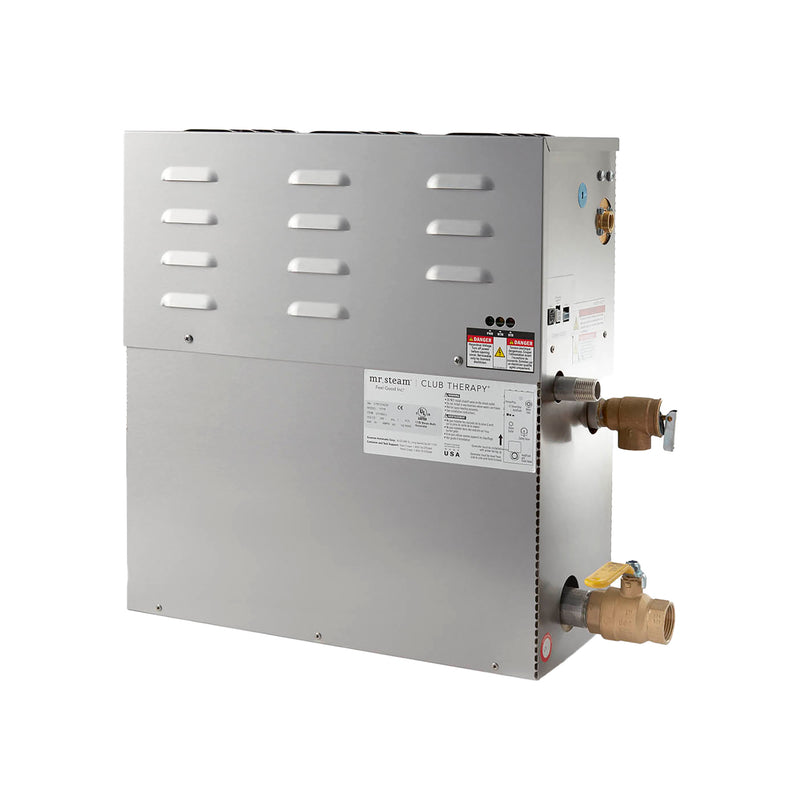

Mr. Steam CT12E Commercial Steam Generator, 12kW

The Mr. Steam CT12E Commercial Steam Shower Generator is a robust and technologically advanced unit, perfect for resort and day spa steam showers. Featuring a durable stainless-steel outer casing and the Express Steam built-in thermostat for quick start-up, this generator offers both efficiency and reliability. Available in 240V and 208V single-phase configurations, it combines eco-conscious water usage with high performance.

Features:

• Industrial-grade, serviceable heating element
• Unitized stainless steel reservoir for durability
• Advanced electronic components
• Round mini-DIN control connections
• Electronic water-level system
• Express Steam built-in thermostat for rapid start-up
• Low voltage safety control circuits
• Built-in 24V circuits
• ASME safety valve and full port drain valve
• UL/cUL listed for safety

Specifications:

• Model: CT12EC1
• Kilowatt Rating: 12kW
• Voltage: Available in 240V and 208V single-phase (1PH) configurations
• Minimum Adjusted Cubic Feet: 258
• Maximum Adjusted Cubic Feet: 411
• Water Supply Connection: 3/8" NPT
• Generator Steam Line Connection: 1/2" NPT
• Steam Head Connection: 1/2" NPT
• Drain Connection: 1" NPT
• Safety Relief Valve Connection: 3/4" NPT
• Safety Relief Valve PSIG: 15 PSIG
• Dimensions: 17"L x 7 7/8"D x 18 1/2"H
• Shipping Weight: 40 lbs
• Water Usage: 1.6 gallons per 20-minute session

Package Includes:

• CT12E Day Spa 12kW Generator
• Express Steam (Factory Installed)
• Installation and Operation Manual
• UL/cUL Listed and CE Approved
• Limited Lifetime Warranty
