Mr. Steam MSBUTLERX MSITPLUS Operating Package for MAX Series

The Mr. Steam MS Butler Max package is designed for use with the MS Max 4-6E steam generators, providing comprehensive control and accessories to enhance the steam bathing experience.

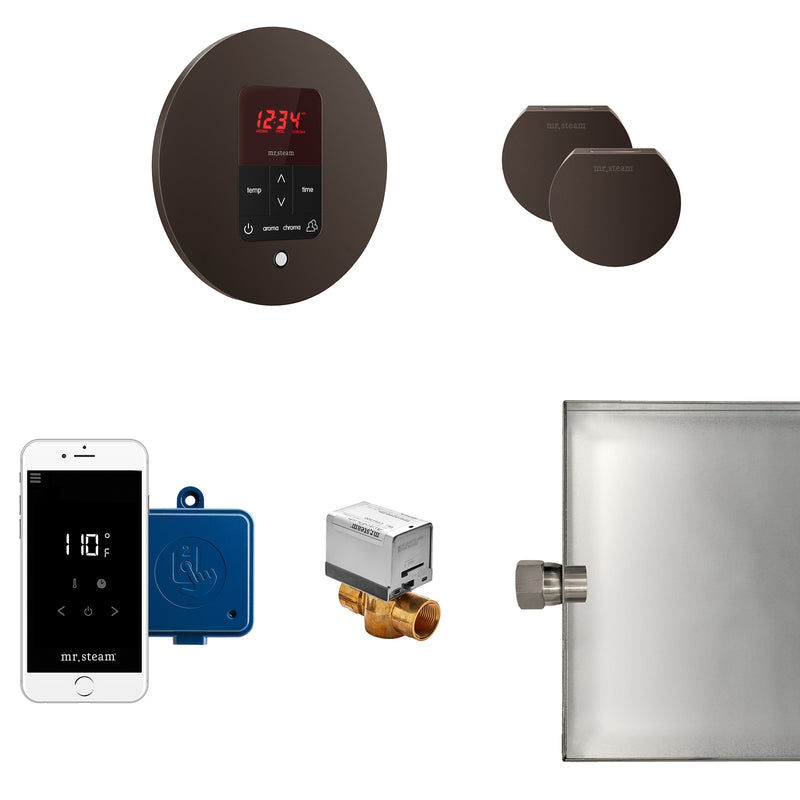

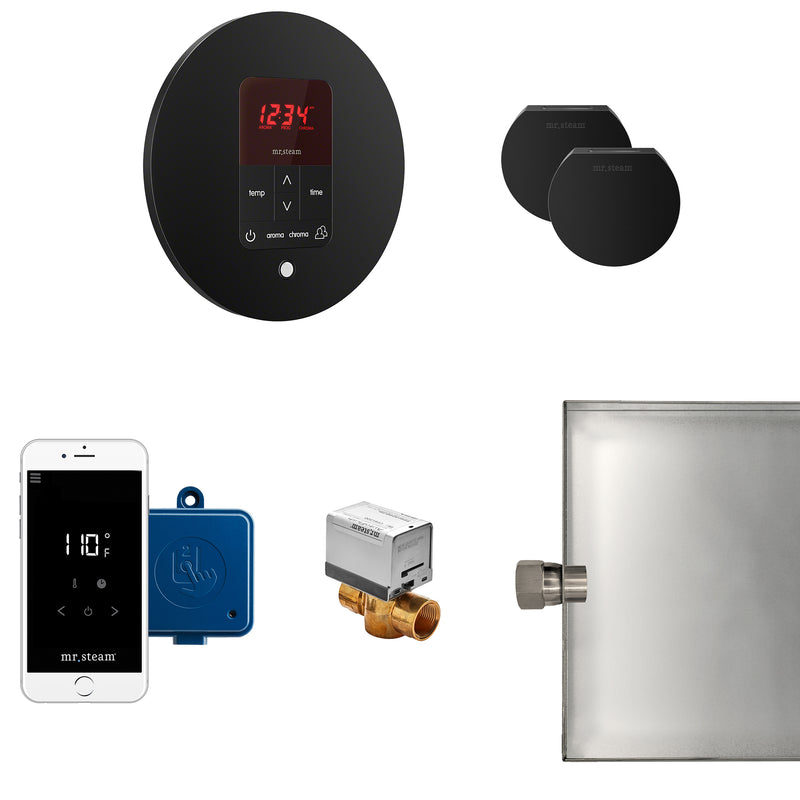

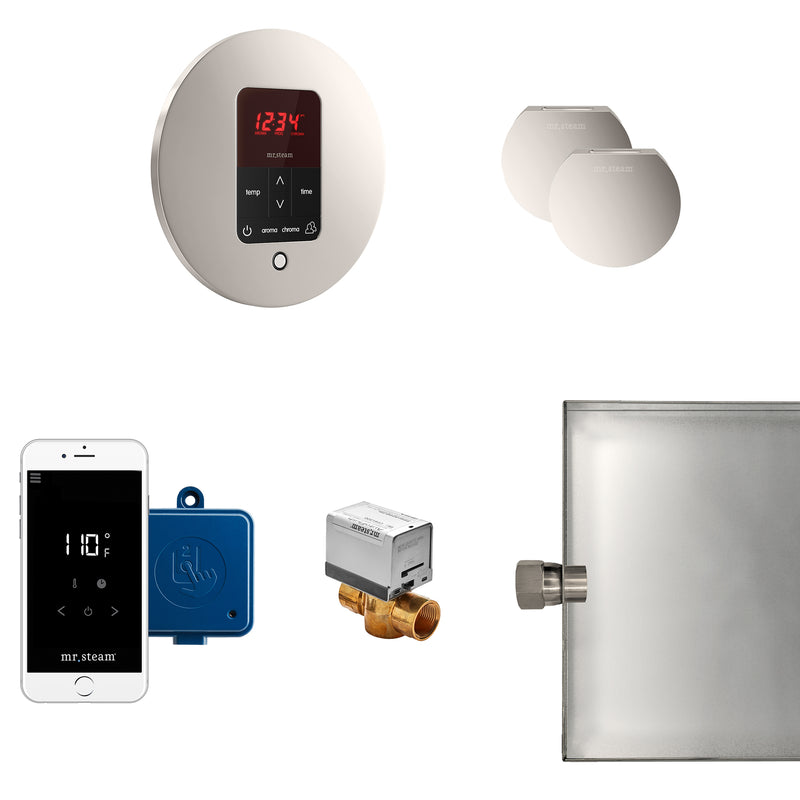

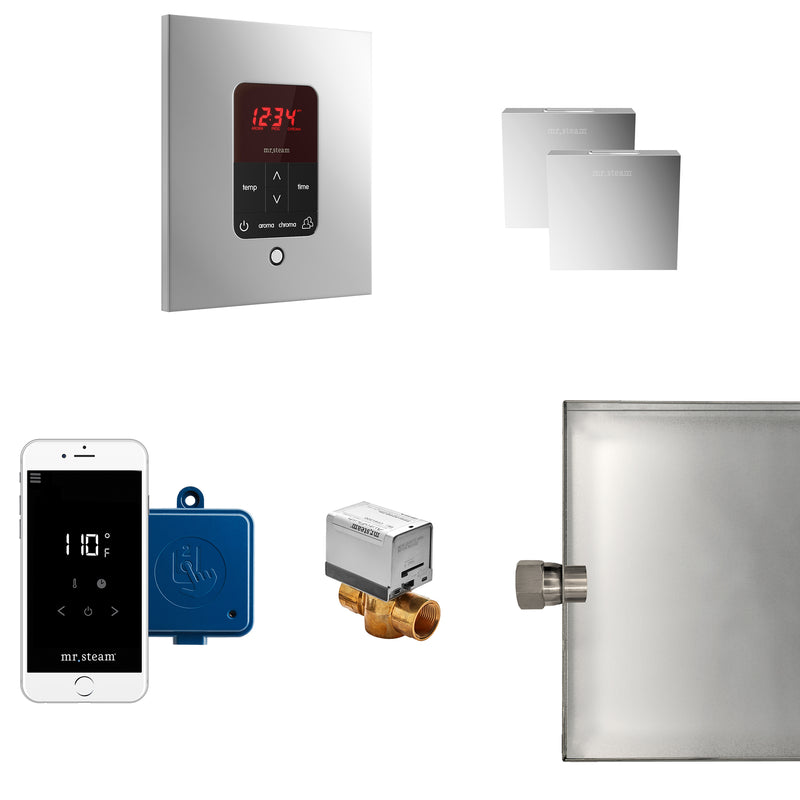

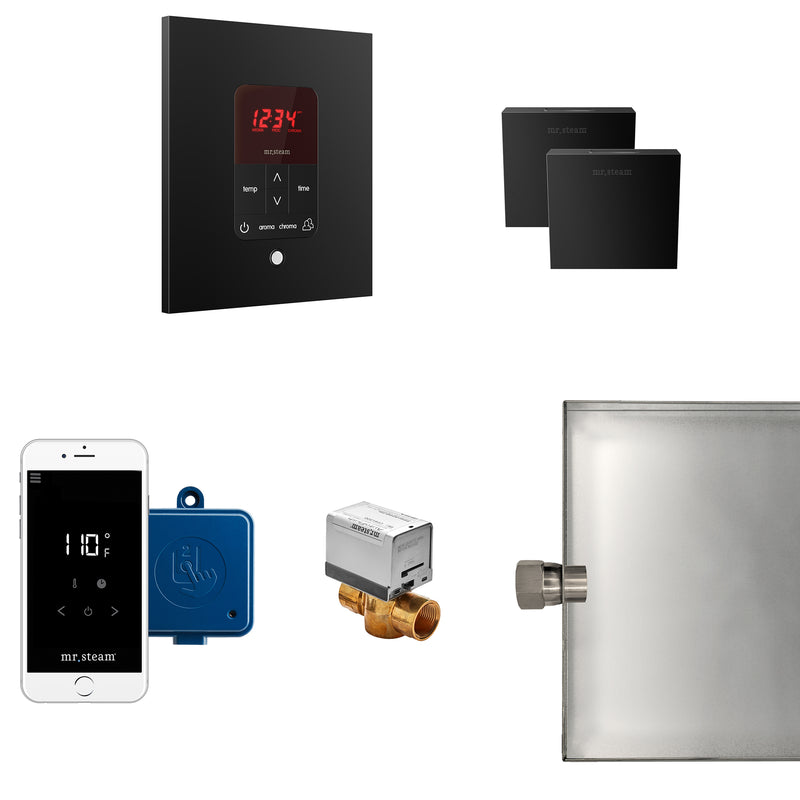

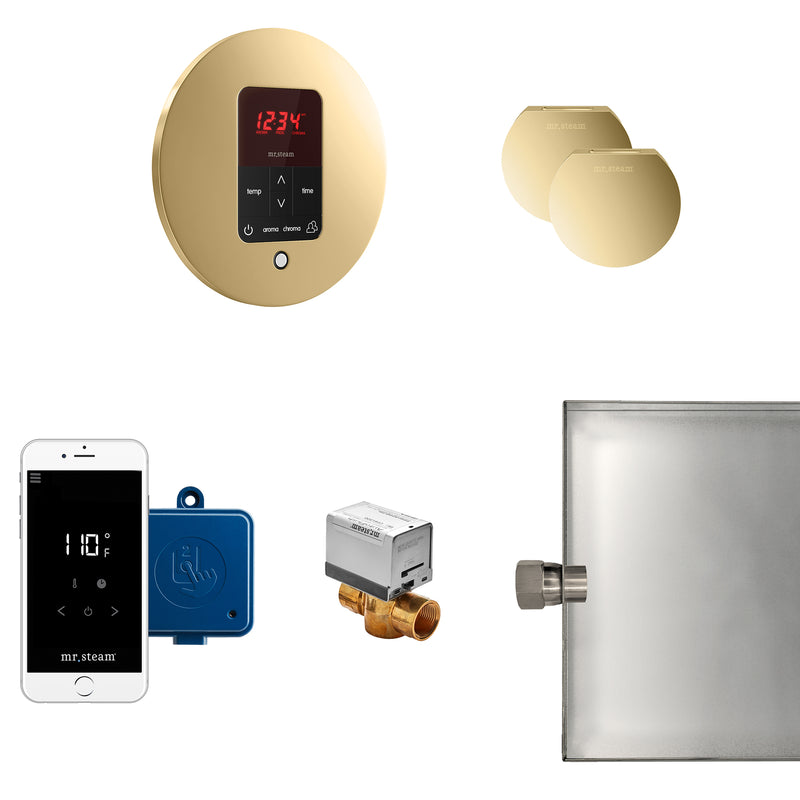

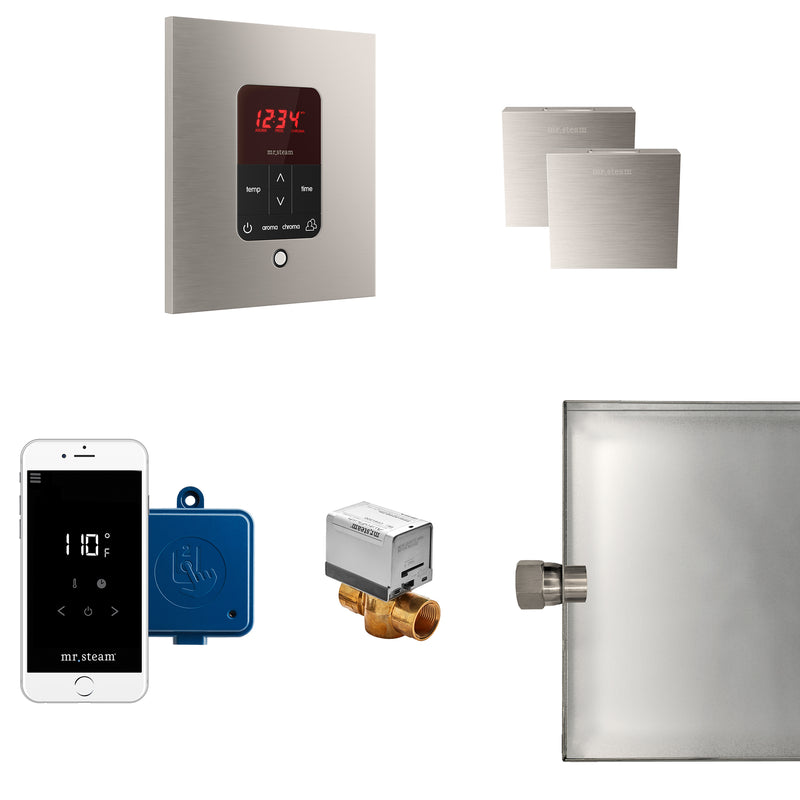

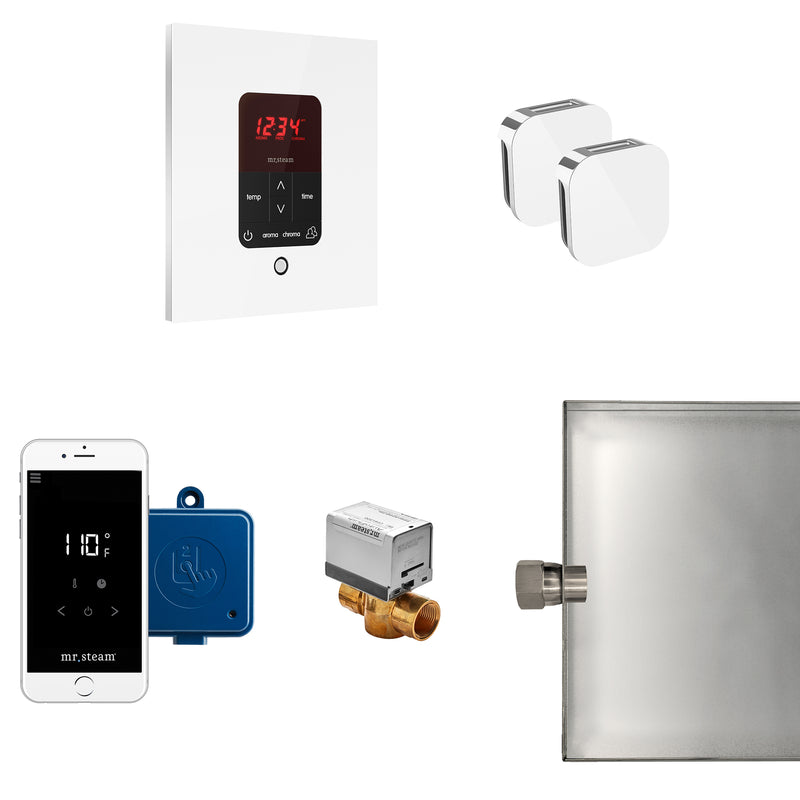

Key Components:

• iTempo Plus Control: Allows bathers to set programmable temperature, duration of the steam shower, on/off control, aroma, and lighting. It features a digital readout display and soft-touch keypad.
• SteamLinx Module: Enables the control of steam room functionality via a smartphone or mobile device from anywhere in the house.
• AromaSteam Steam Heads: Two designer steam heads that evenly disperse steam throughout the enclosure. Each steam head has an integrated aromatherapy reservoir for essential oils.
• AutoFlush Drain System: Automatically cleans the generator tank after each bathing session. This system is larger than the standard version.
• Drip Pan: Larger than the standard version, it prevents potential water leaks.

Specifications:

• Model: MS Butler Max
• Available Finishes: Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, White Facia, Black Facia, Polished Nickel, and Satin Nickel.
• Shipping Weight: 13 lbs

iTempo Plus Operating Control:

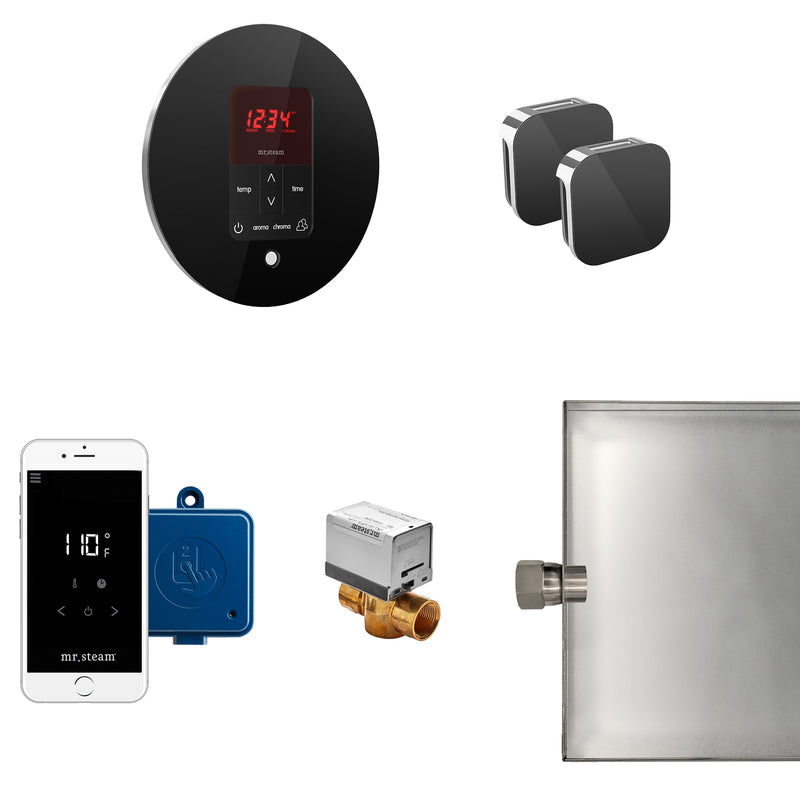

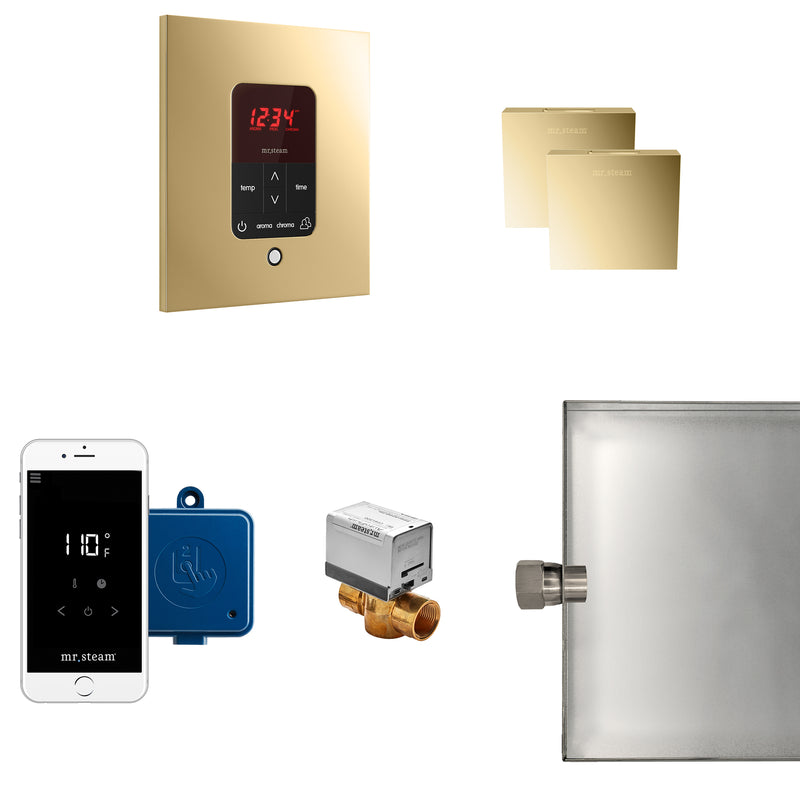

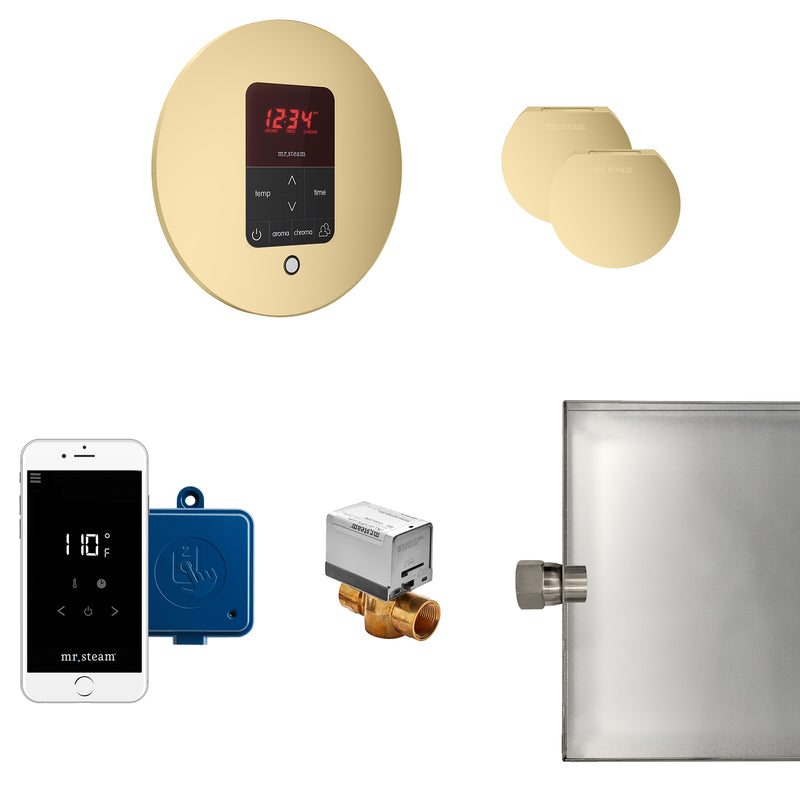

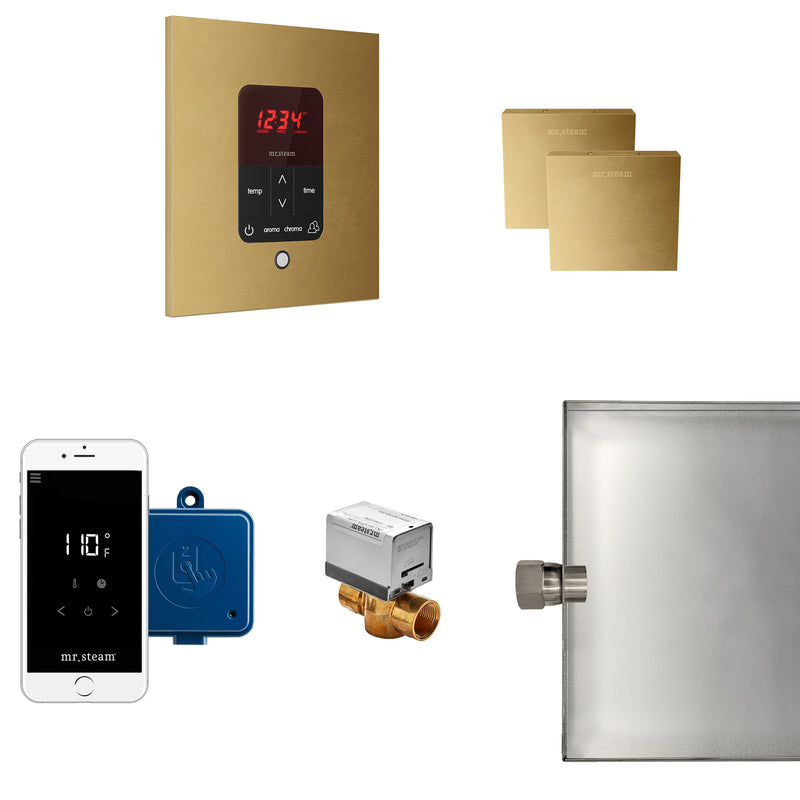

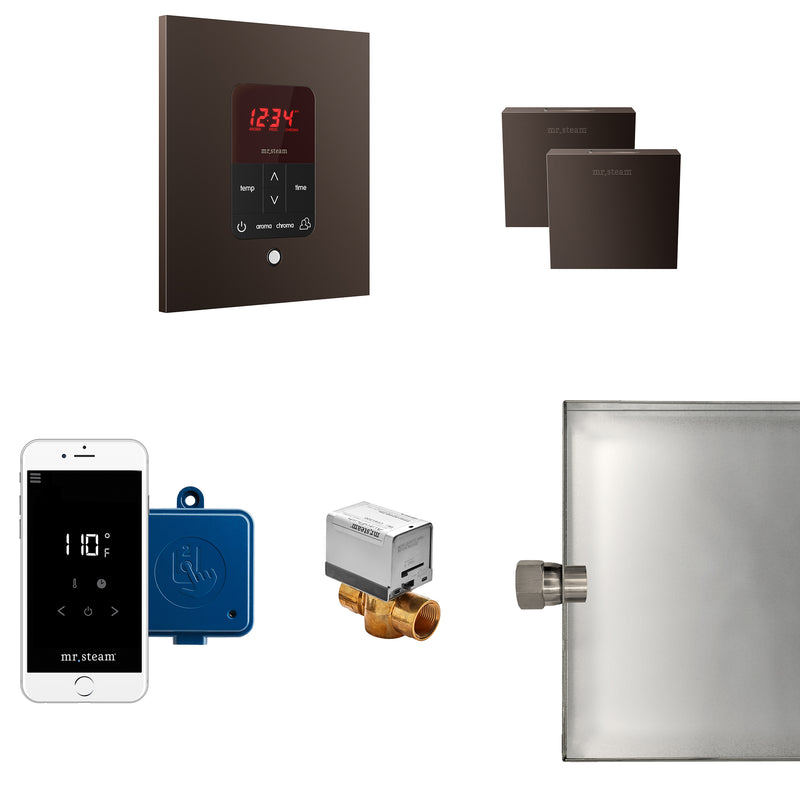

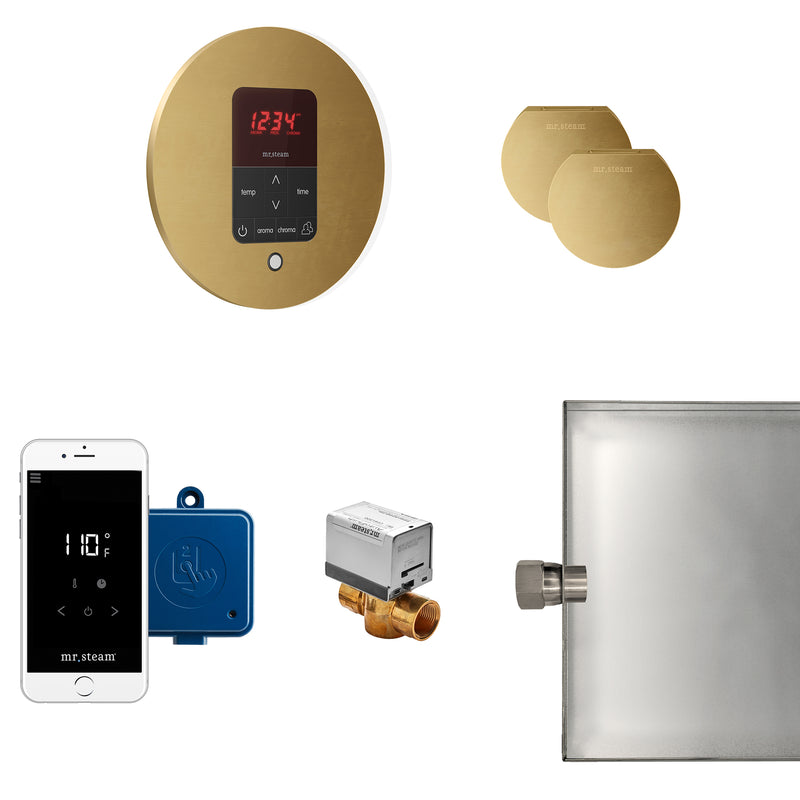

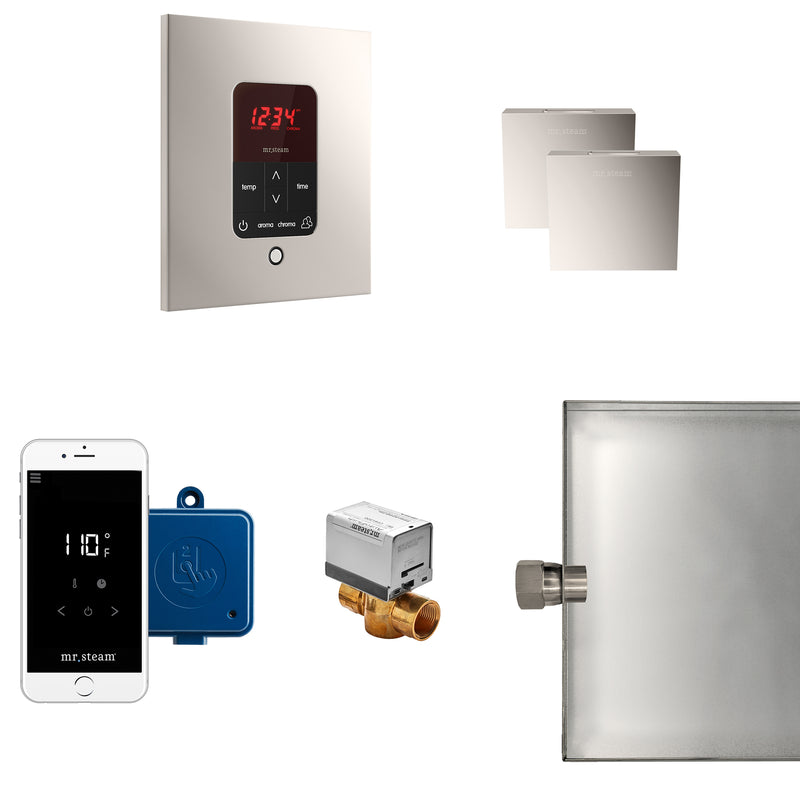

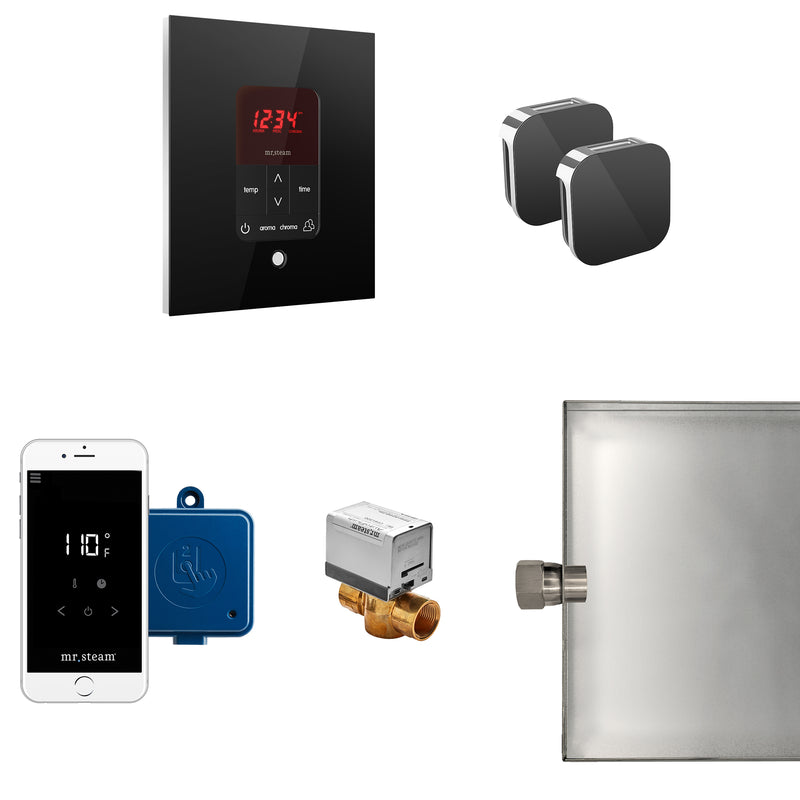

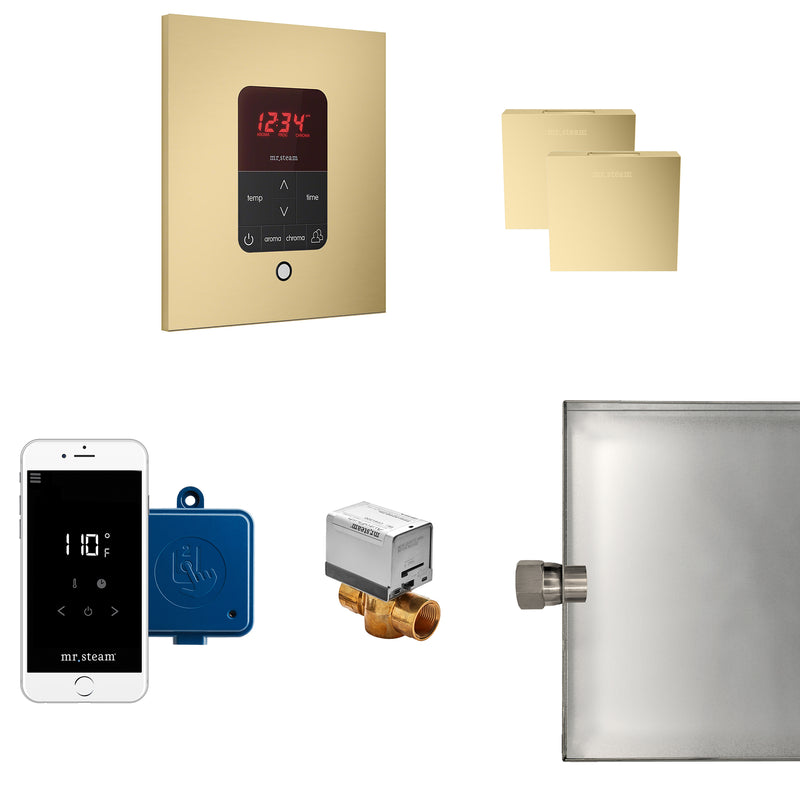

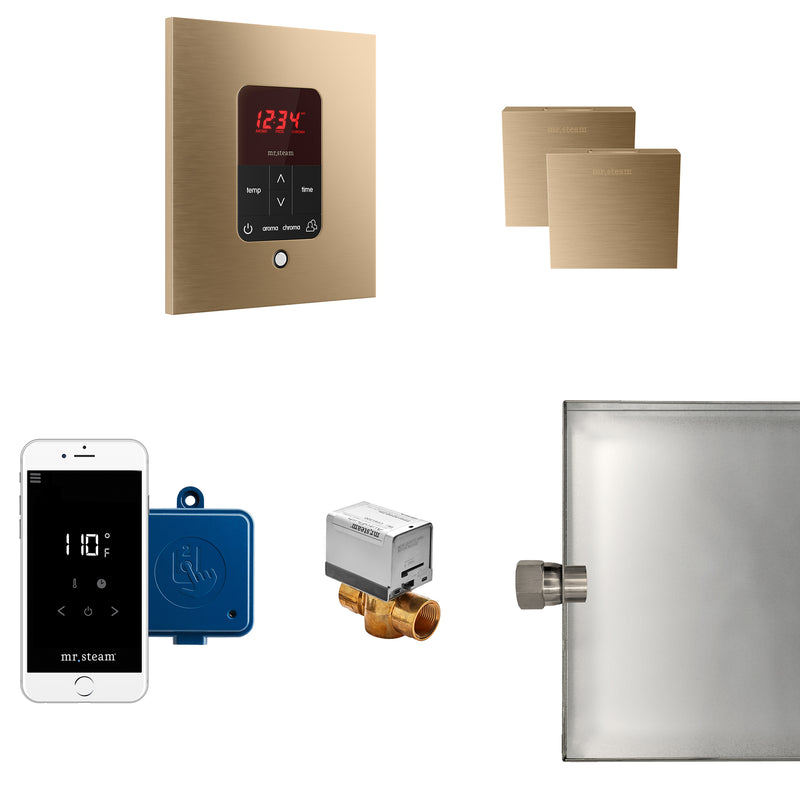

• Shape Options: Available in round (MSBUTLERXRD) or square (MSBUTLERXSQ).
• Programmable Time and Temperature Control: Includes two preferred time and temperature memory settings.
• Additional Features: Initiates AromaSteam and ChromaSteam options, preset 60-minute time cycle, on/off and pause modes, low voltage operation, displays troubleshooting codes.
• Installation: Can be installed inside or outside the steam/shower enclosure.

SteamLinx:

• Functionality: Operate time, temperature, on/off remotely using a smartphone (smartphone not included).
• Connectivity: Connects to the existing home WiFi router.
• Components: Secondary control module, SteamLinx router module, Ethernet cable (6' long), power adapter.

Steam Head:

• Connection: 3/4” NPT
• Designer Finishes: Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, White Facia, Black Facia, Polished Nickel, and Satin Nickel.
• Feature: Integral reservoir for scented steam bath.

AutoFlush System:

• Specifications: 24 volts AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2, brass valve body with 1" NPT connections, two-lead integral electrical lead for terminal connection, gravity drain.

Drain Pan:

• Material: Galvanized sheet metal construction
• Connection: Integral 3/4” female PVC drain connection.

Package Includes:

• MS ITPLUS Surface-Mounted Control: 3-7/8" diameter, 7/8" deep.
• MiniDIN Control Cable: 30' long.
• RTV Silicone Sealant: 0.5 oz tube.
• Steam Head: 1/2" NPT, 3-1/16" diameter, 1-13/16" deep.
• Automatic Drain Valve
• Drain Pan
• Steamlinx Generator Module: 3-3/8" x 2-3/4"W x 7/8"D.
• Steamlinx Router Module: 3-3/8"H x 2-3/4"W x 7/8"D.
• Ethernet Cable: 6' long.
• Power Adapter
• Installation and Operation Manual
• Limited Warranty

The Mr. Steam MSBUTLERX package provides all the necessary controls and components for a luxurious and fully automated steam shower experience, ensuring an optimal home steam bath environment.
