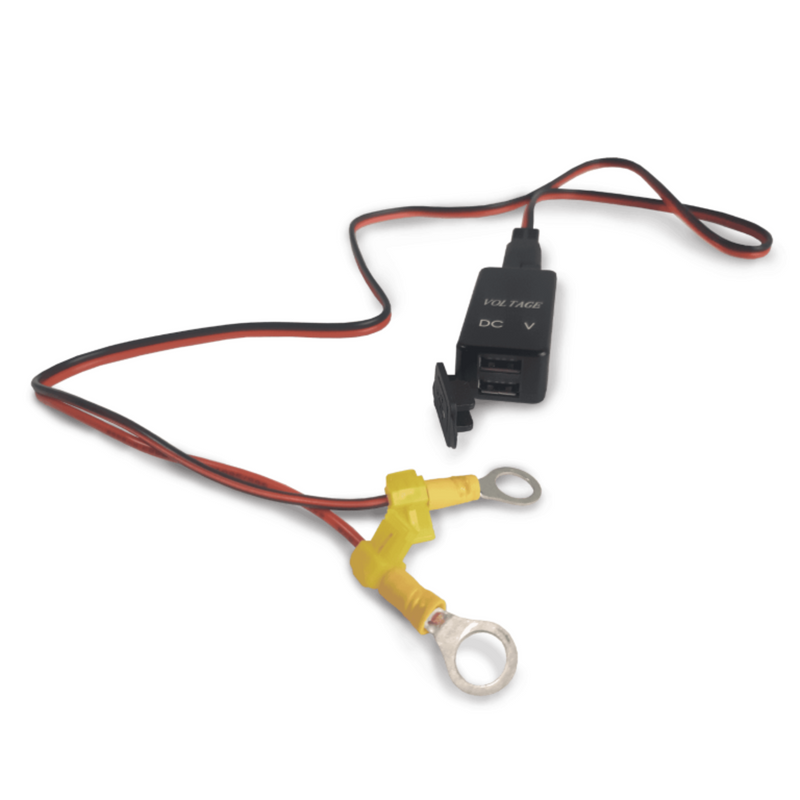

USB Phone Charger, Voltmeter, & Terminal Adapter Wiring Kit

Charge your cellphone, power electronics, and monitor battery voltage with this versatile wiring kit designed for 12V Dakota Lithium batteries. This multi-purpose kit allows you to charge multiple devices, check the voltage, and adapt your battery terminals, all from a single power source.

Key Features:

Dual USB Charging Ports

• 2 USB Charging Ports: Charge two devices simultaneously, such as your phone, tablet, or camera, from your Dakota Lithium battery.
• Run Main Electronics Simultaneously: Power larger electronics (like fish finders, small appliances, or lights) while charging your personal devices.

Voltmeter for Real-Time Battery Monitoring

• Monitor Battery Voltage: Instantly check the charge level of your battery via the volt meter integrated into the kit.

Adapter Terminals

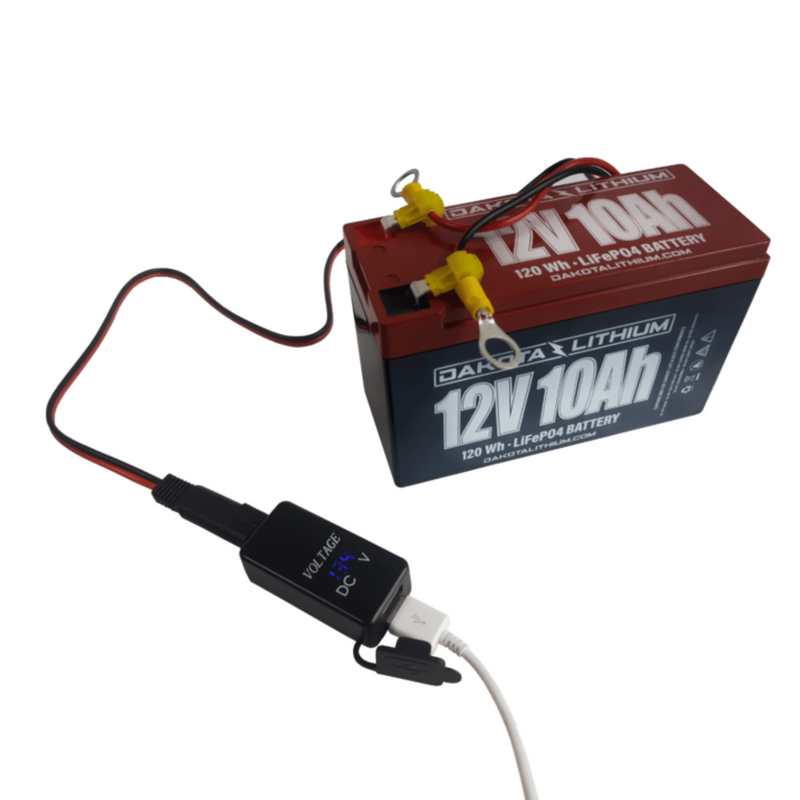

• F2 Spade Socket Terminals: Ideal for 7Ah, 10Ah, or 18Ah Dakota Lithium batteries, these terminals allow you to connect additional electronics via ring terminals or SAE socket.

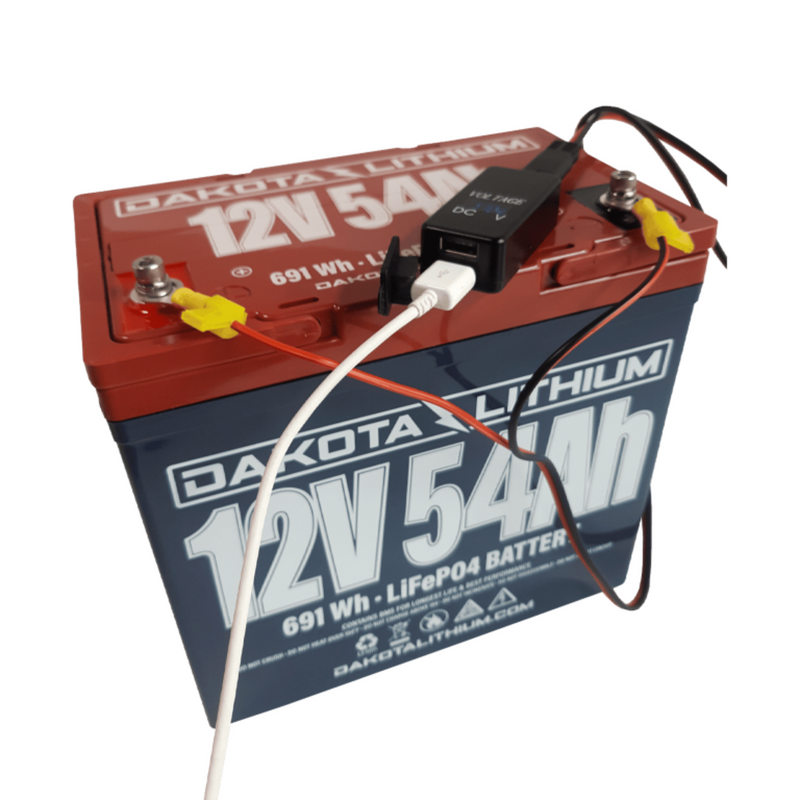

• Ring Terminals to SAE Socket Adapter: Attach the ring terminals to 23Ah, 54Ah, or 100Ah Dakota Lithium batteries, and use the SAE socket for expanded device connections.

Flexible, Multi-Device Power Source

• Charge personal electronics like phones or cameras while running other devices from the same battery.
• Max 10 Amps: Wiring is rated to handle up to 10 amps—perfect for small electronics like fish finders, cameras, and small appliances.

Compact and Convenient

• Remove Voltmeter to Use SAE Socket: For even more versatility, the voltmeter can be removed, providing access to the SAE socket plug to connect other devices as needed.

Installation Instructions:

• F2 Spade Socket Terminals: Use for 7Ah, 10Ah, or 18Ah Dakota Lithium batteries to power smaller devices and connect electronics.
• Ring Terminals: Use for 23Ah, 54Ah, or 100Ah batteries. These thin ring terminals stack on top of your primary wiring, so you can run multiple devices simultaneously.

Ideal for Small Electronics and Off-Grid Power

• Not Suitable for High-Power Devices: The kit is optimized for low-power electronics like cell phones, cameras, fish finders, and other small devices. It is not recommended for electric motors or high-power systems.

Specifications:

• Max Current Rating: 10 amps
• Terminals: F2 Spade Socket (for 7Ah, 10Ah, or 18Ah batteries), Ring Terminals (for 23Ah, 54Ah, or 100Ah batteries)
• USB Ports: 2 x 5V USB charging ports
• Adapter: SAE socket (remove voltmeter to use)

Why Choose This Wiring Kit?

• All-in-One Charging & Monitoring: Charge multiple devices, monitor your battery voltage, and adapt terminals from one convenient kit.
• Versatile: Perfect for off-grid adventures, mobile workstations, or remote power needs, without needing multiple power sources.
• Customizable: Easily adapt to various Dakota Lithium battery sizes, and expand your system as needed.

The USB Phone Charger, Voltmeter, & Terminal Adapter Wiring Kit is a must-have for anyone looking to get the most out of their Dakota Lithium battery by charging devices, checking battery status, and powering multiple electronics simultaneously.
